| Technical Parameters | ||
|---|---|---|

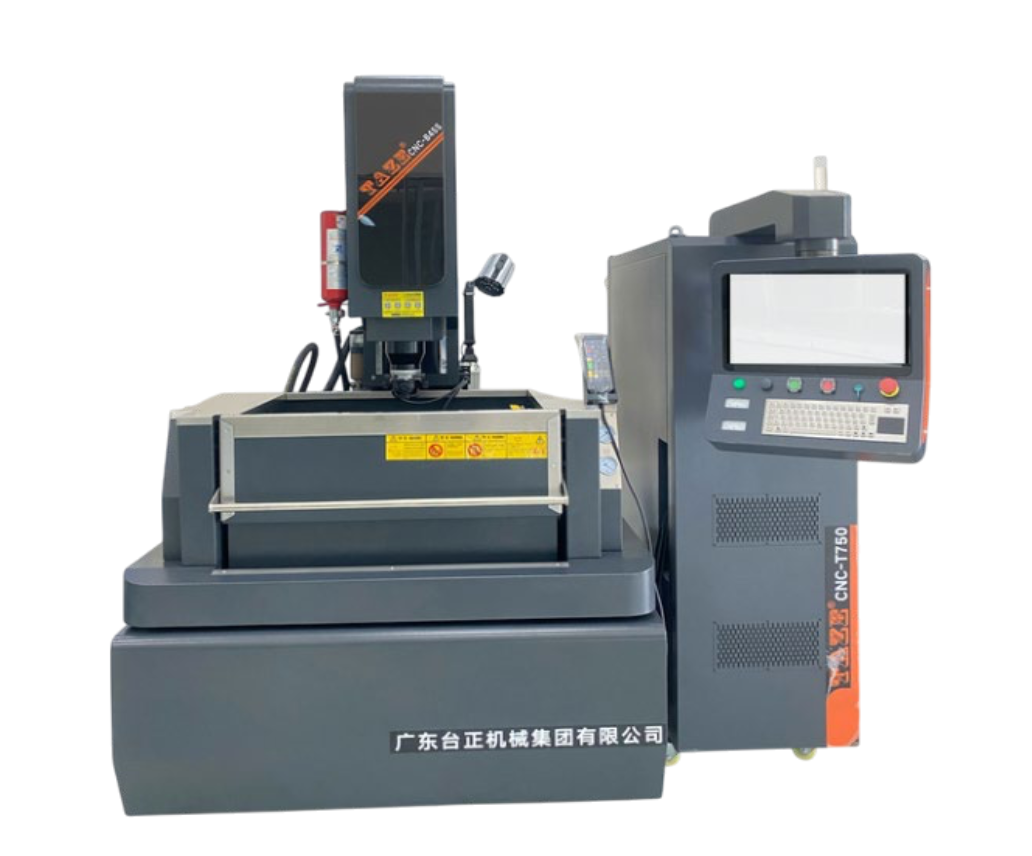

| ITEM | UNIT | CNC-B45S |
| X/Y/Z-axis working travel | mm | 450 / 350 / 300 |
| Working oil tank volume (L x W x H) | mm | 900 × 640 × 410 |
| Table specifications (L x W) | mm | 700 × 400 |
| Distance from electrode tip to table | mm | 150–450 |
| Max. electrode load | Kg | 50 |
| Max. table load | Kg | 400 |
| Net machine weight (including oil tank) | Kg | 2850 |
| Overall size (L x W x H) | mm | 1450 × 1900 × 2380 |
| Exterior dimensions of the filter box (L x W x H) | mm | 1250 × 1250 × 950 |
